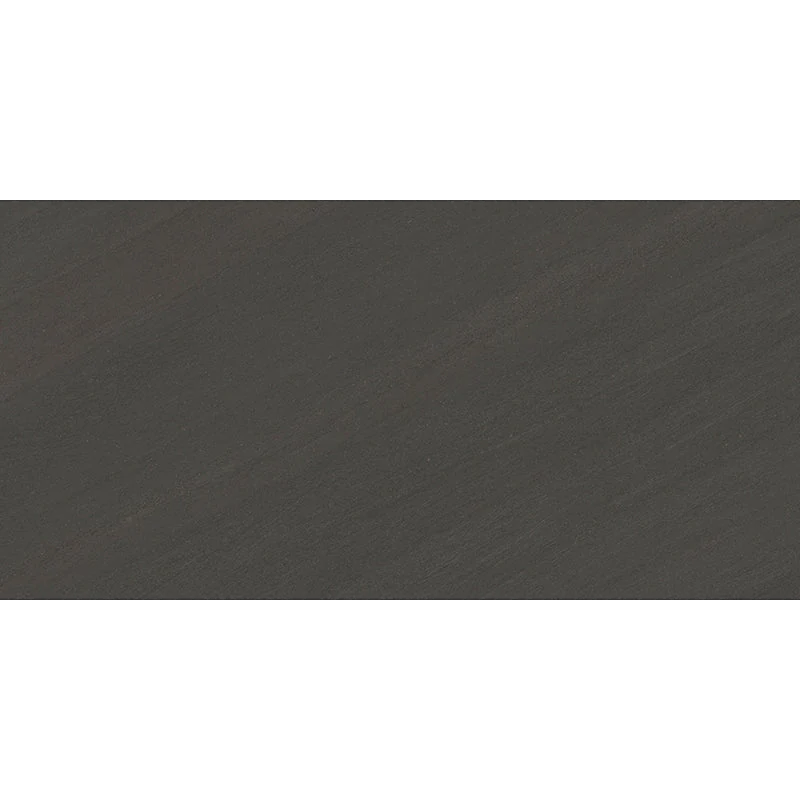

Kursaal Raven 12×24 Porcelain Tile Natural Rectified
Sleek and versatile, the Kursaal Raven 12×24 porcelain tile delivers a sophisticated dark tone with a soft natural (matte) surface. The 12×24 format reduces grout lines for a cleaner, more contemporary look, while rectified edges support tight, consistent joints across floors and walls.
Crafted in durable porcelain with a PEI 4 wear rating, Kursaal Raven balances design flexibility with everyday practicality. Frost resistance broadens design options to exterior facades in freeze–thaw climates. Each box covers 15.5 sq. ft. (8 pieces), making planning straightforward for residential spaces and select light commercial interiors.

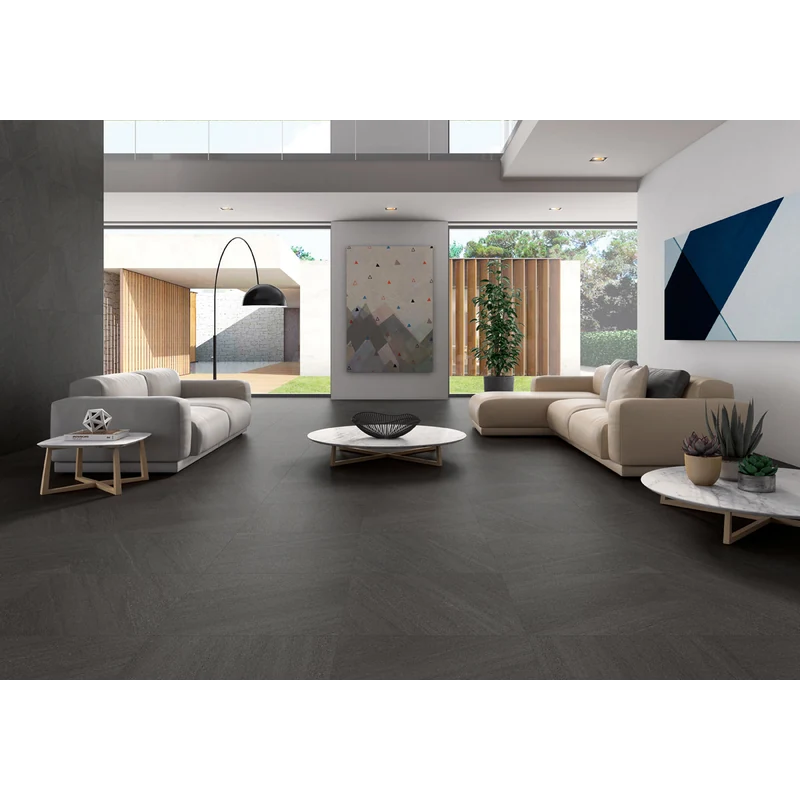

Use it as a refined foundation or mix with contrasting materials to build layered, architectural detail. The understated matte finish complements a wide range of palettes and textures.
Features
- Porcelain body for durability and easy maintenance
- Color: Raven (deep, modern dark tone)
- Finish: Natural (matte) surface
- Edge: Rectified for precise, narrow grout joints
- Size: 12×24 format
- Thickness: 3/8 in. (9mm)
- PEI 4 wear rating for robust residential and select light commercial floors
- Frost resistant for freeze–thaw exterior wall applications
- Coverage: 15.5 sq. ft. per box | 8 pieces per box
Recommended Applications
- Residential interior floors
- Residential interior walls
- Light commercial interior floors
- Commercial interior walls
- Backsplashes
- Shower walls
- Fireplace surrounds
- Exterior walls/facades (freeze–thaw)
Installation Guide – Kursaal Raven 12×24 Porcelain Tile Natural Rectified
Important Advisory
Always follow the tile manufacturer’s instructions, local building codes, and recognized industry standards (ANSI A108/A118 and TCNA guidelines). Verify substrate suitability, movement accommodation, and waterproofing/drainage where required for the application.
Step 1: Layout & Planning
- Confirm the substrate is clean, dry, structurally sound, and flat within tolerances appropriate for 12×24 tile.
- Pre‑plan the layout, dry‑laying pieces to balance cuts and avoid narrow slivers at perimeters.
- Blend tiles from multiple boxes to distribute any shade variation evenly.
- Select a grout joint width appropriate for rectified tile and the pattern; include movement joints per TCNA EJ171.
Step 2: Tile Installation
- Use a polymer‑modified thin‑set mortar approved for porcelain tile and the project conditions.
- Key mortar into the substrate and comb in one direction; back‑butter tiles as needed to improve coverage, especially with 12×24 pieces.
- Set tile with a slight motion to collapse ridges and achieve proper bond; follow industry guidance for required coverage based on area and exposure.
- Use a leveling system when appropriate to help minimize lippage on larger-format installations.
- Allow mortar to cure per manufacturer instructions before grouting or permitting light traffic.
Step 3: Cutting
- Cut using a wet saw with a premium diamond blade rated for porcelain.
- Mark cuts carefully and support the tile fully to reduce chipping.
- Ease sharp cut edges where they will be exposed.
Step 4: Joint Filling
- Choose a grout suitable for porcelain and the selected joint width; mix and apply per manufacturer instructions.
- Pack joints fully with a rubber float, clean diagonally, and remove haze promptly with clean water.
- Use appropriate sealant at movement joints and changes of plane; do not grout these areas.
- Protect the installation from traffic until the grout has cured.
Step 5: Cleaning & Maintenance
- Clean routinely with a pH‑neutral cleaner approved for porcelain; avoid acids or harsh abrasives.
- Use entry mats and furniture pads to minimize grit and scratching.
- Follow grout and setting material manufacturers’ care recommendations; reseal cementitious grout if specified.
Disclaimer
Installation should be performed by qualified professionals. Confirm actual materials, lot-to-lot variations, and suitability for specific applications before installation. Stone Market USA is not responsible for issues arising from improper installation, handling, or site conditions.
