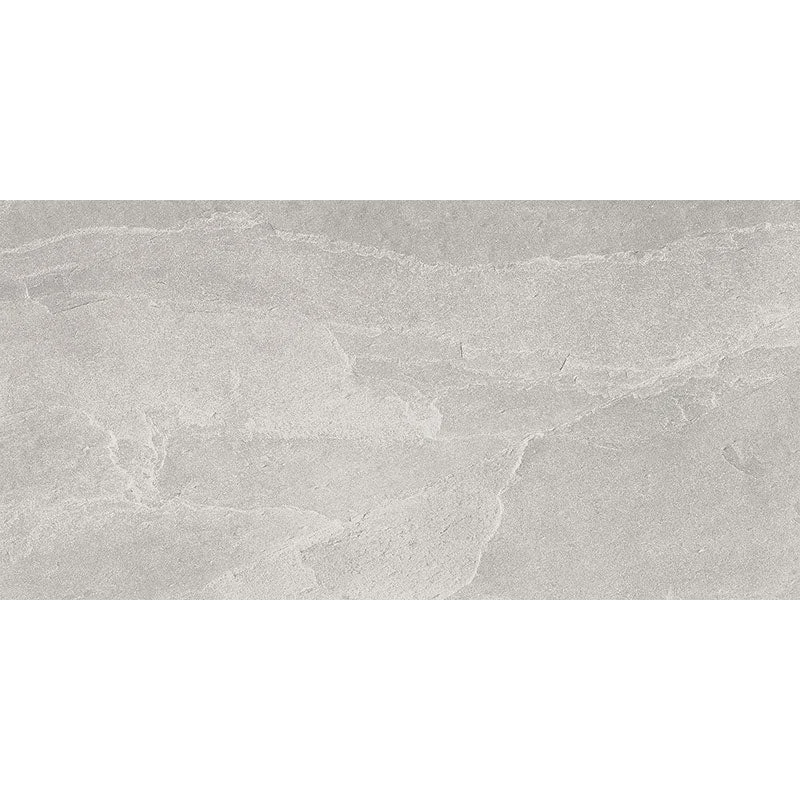

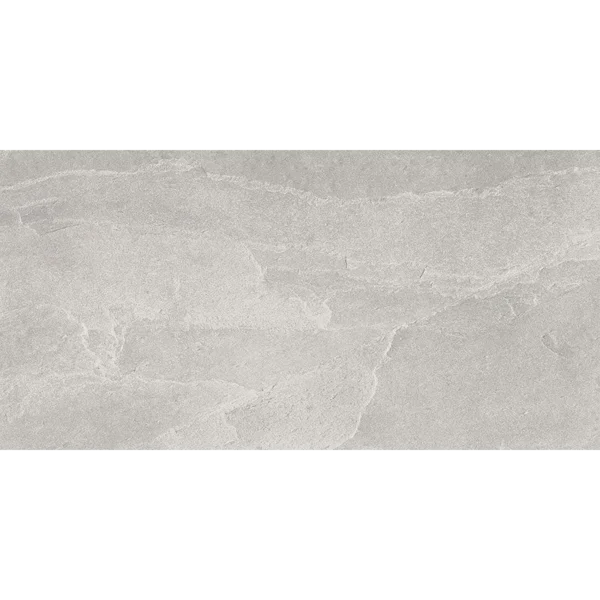

X-Rock W 12×24 Porcelain Tile Natural Rectified
Streamlined and versatile, the Happy Floors X-Rock W 12×24 porcelain tile features a natural finish and precise rectified edges for crisp, consistent lines. The 12×24 format helps minimize grout for a clean, modern look across walls or floors.
Engineered in durable porcelain with a PEI 4 wear rating, it balances design flexibility with everyday practicality. Frost resistance expands options to exterior facades in freeze–thaw climates. Box coverage is 11.62 sq ft (6 pieces), simplifying planning and estimating.

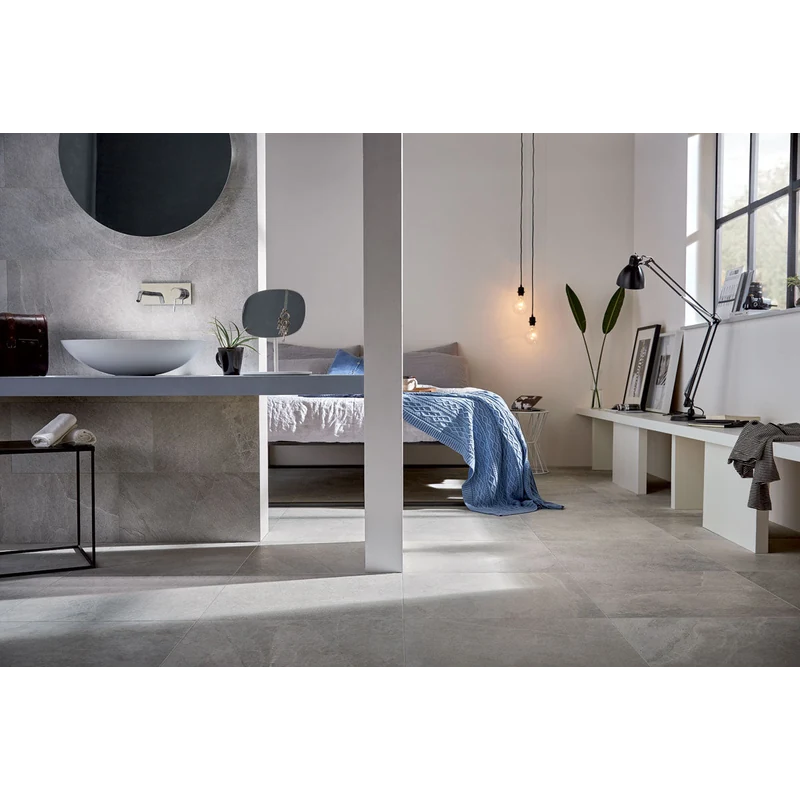

Use it on its own for a refined, minimal foundation or mix with complementary materials to build layered, architectural detail throughout your space.
Features
- Porcelain body for durability and easy care
- Color: W
- Finish: Natural
- Edge: Rectified for precise, narrow grout joints
- Size: 12×24 format
- PEI 4 wear rating for robust residential use
- Frost resistant for freeze–thaw exterior wall applications
- Coverage: 11.62 sq ft per box | 6 pieces per box
Recommended Applications
- Residential interior floors
- Residential interior walls
- Light commercial interior floors
- Commercial interior walls
- Backsplashes
- Shower walls
- Fireplace surrounds
- Exterior walls/facades (freeze–thaw)
Installation Guide – X-Rock W 12×24 Porcelain Tile Natural Rectified
Important Advisory
Follow the tile manufacturer’s instructions, local building codes, and ANSI A108/A118 and TCNA guidelines. Confirm substrate suitability, movement accommodation, and waterproofing/drainage where required for the application.
Step 1: Layout & Planning
- Verify the substrate is clean, dry, structurally sound, and flat within tolerances for larger-format tile such as 12×24.
- Plan the layout by dry-laying tiles, centering the design, and avoiding sliver cuts at perimeters and transitions.
- Blend tiles from multiple boxes to evenly distribute any shade or pattern variation.
- Select a grout joint consistent with rectified tile and the layout; include movement joints per TCNA EJ171.
Step 2: Tile Installation
- Use a polymer‑modified thin‑set mortar approved for porcelain and larger-format tiles.
- Key mortar into the substrate, then comb with an appropriate notched trowel; back‑butter tiles as needed to improve coverage.
- Set tiles with a slight back‑and‑forth motion to collapse ridges and achieve proper bond; target coverage levels per ANSI for the location (typically 80% interior/95% wet or exterior).
- Use a tile leveling system when needed to help minimize lippage with 12×24 formats.
- Allow mortar to cure per manufacturer recommendations before grouting or allowing traffic.
Step 3: Cutting
- Cut with a wet saw using a premium diamond blade rated for porcelain.
- Mark cuts carefully and support the tile fully to reduce chipping.
- Ease sharp cut edges where they will be exposed.
Step 4: Joint Filling
- Choose a grout suitable for porcelain and the selected joint width; follow manufacturer instructions for mixing, application, and cure.
- Pack joints fully with a rubber float, clean diagonally, and remove haze promptly with clean water.
- Use appropriate sealant at changes of plane and movement joints; do not grout these areas.
- Protect the installation from traffic until grout has cured.
Step 5: Cleaning & Maintenance
- Clean routinely with a pH‑neutral cleaner designed for porcelain tile; avoid harsh acids or abrasives.
- Use entry mats and protective glides to reduce tracked‑in grit and scratching.
- Follow grout and setting‑material manufacturers’ maintenance guidance; reseal cementitious grout if recommended.
Disclaimer
Installation should be performed by qualified professionals. Confirm actual materials, lot variations, and suitability for the intended application before installation. Stone Market USA is not responsible for issues arising from improper installation, handling, or site conditions.
